Offline CNC RAG Assistant

Python FAISS Sentence Transformers Ollama Mistral Streamlit RAG Offline First

An offline Retrieval-Augmented Generation assistant for CNC machine operation and maintenance documentation.

Offline CNC RAG Assistant hero image

This project demonstrates how a local AI assistant can help operators and technicians search dense industrial manuals, retrieve relevant technical evidence, and generate cited answers without depending on a cloud LLM.

The prototype targets a Haas CNC Mill with Next Generation Control using publicly available Haas operator documentation.

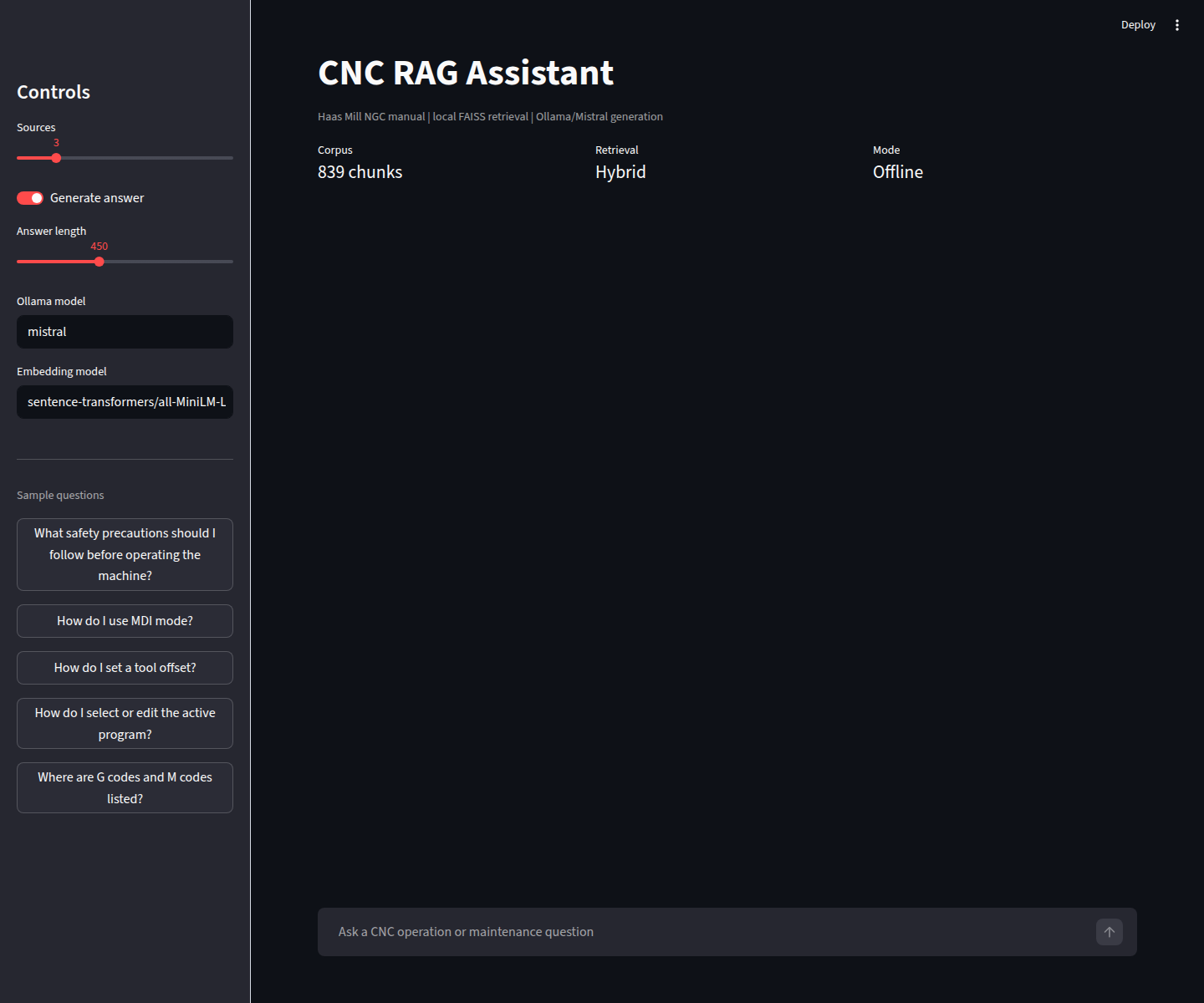

CNC RAG Assistant UI

Why This Project

Manufacturing environments depend on fast decisions. When a machine operator has a question about setup, offsets, alarms, safety, program editing, or maintenance checks, the answer is often somewhere in a manual, procedure, or training resource. The challenge is that finding the right page at the right moment can interrupt production flow.

In many shops, this creates unnecessary back-and-forth:

Operator has a question
  -> asks a more experienced operator
  -> waits for a supervisor or manager
  -> searches a manual or shared folder
  -> returns to the machine
  -> repeats if the answer was incomplete

That loop is normal in industrial work, but not every question needs escalation. Many questions are documentation questions: where a feature is described, what a control key does, what a procedure says, or which manual page explains a setting. A local assistant can reduce that friction by giving operators a first place to ask grounded questions while still pointing back to the official source.

The intended role of this assistant is:

This is especially relevant for industrial engineering and manufacturing settings where productivity, safety, standard work, and knowledge transfer all matter at the same time.

Why CNC Specifically

CNC machines are a strong use case for offline RAG because they sit at the intersection of mechanical systems, controls, programming, tooling, workholding, maintenance, and operator safety.

Representative CNC vertical machining center

A CNC operator may need to understand:

The documentation is technical, dense, and highly procedural. It is also exactly the kind of information that should not be guessed by a generic chatbot. A RAG system is a good fit because it can retrieve the relevant manual pages first, then generate an answer from those sources.

CNC also makes the portfolio story concrete. Instead of building a generic “chat with PDF” application, this project focuses on a real manufacturing workflow where retrieval quality, citations, latency, and safety boundaries matter.

Project Motivation

CNC machines are supported by large technical document sets: operator manuals, alarm references, setup procedures, maintenance guides, and training material. These resources are accurate, but they are often difficult to search quickly during production or troubleshooting.

This project explores a practical offline alternative:

The goal is not to replace trained operators, supervisors, or maintenance personnel. The goal is to provide fast, traceable access to machine documentation so routine questions can be answered quickly and higher-risk questions can be escalated with better context.

Tech Stack

Layer Technology Role
Language Python Core ingestion, retrieval, generation, CLI, and UI logic
PDF processing pypdf Extract text from machine manuals
Embeddings sentence-transformers/all-MiniLM-L6-v2 Convert manual chunks and questions into vectors
Vector search FAISS Local similarity search over embedded chunks
Retrieval scoring Custom hybrid scoring Combines semantic, keyword, and procedural signals
Local LLM runtime Ollama Runs the model locally without a cloud API
LLM Mistral Generates answers from retrieved documentation
UI Streamlit Local browser interface for chat and source review
Evaluation Pytest + custom eval set Checks retrieval quality against expected pages and terms

Acronyms And Terms

Term Meaning In This Project
CNC Computer Numerical Control The machine type supported by the assistant; a CNC mill is used as the demo machine.
RAG Retrieval-Augmented Generation The architecture that retrieves manual excerpts before generating an answer.
LLM Large Language Model The local model that writes the final answer from retrieved sources.
FAISS Facebook AI Similarity Search The local vector index used for fast similarity search.
PDF Portable Document Format The source format for the Haas operator manual.
UI User Interface The Streamlit chat interface used to ask questions and inspect sources.
CLI Command-Line Interface Terminal commands such as cnc-rag ingest, cnc-rag search, and cnc-rag eval.
MDI Manual Data Input A CNC control mode where unsaved blocks of code can be entered and run.
G-code Geometric code CNC programming instructions that define machine motion and operations.
M-code Miscellaneous code CNC programming instructions for machine functions such as coolant or spindle control.
NGC Next Generation Control The Haas control family referenced by the selected operator manual.
OCR Optical Character Recognition A possible future feature for extracting text from scanned manuals or images.
SOP Standard Operating Procedure A future document type that could be ingested alongside manuals and maintenance guides.

Demo Machine And Corpus

The current demo corpus is based on a Haas CNC mill because Haas publishes realistic operator documentation that can be used in a reproducible portfolio project.

Primary source:

Current indexed corpus:

Document: Haas Mill NGC Operator's Manual
Chunks:   839
Index:    FAISS
Model:    sentence-transformers/all-MiniLM-L6-v2
LLM:      Ollama + Mistral
Mode:     Local/offline after setup

Architecture

flowchart TD
    A[Haas manual PDF] --> B[PDF text extraction]
    B --> C[Page-aware chunking]
    C --> D[Local embedding model]
    D --> E[FAISS vector index]
    C --> F[Chunk metadata JSON]

    Q[Operator question] --> R[Hybrid retrieval]
    E --> R
    F --> R

    R --> S[Ranked source chunks]
    S --> T[Ollama / Mistral prompt]
    T --> U[Streamed cited answer]
    S --> V[Visible source excerpts]

    U --> W[Streamlit UI]
    V --> W

The system uses a deliberately transparent RAG pipeline. Retrieval scores are shown in the interface so the user can see why sources were selected.

Retrieval Strategy

The retriever does not rely only on vector similarity. It combines three signals:

The final hybrid score is used to rank chunks. Results are also diversified by page so that one page does not crowd out all other useful evidence.

This matters for CNC documentation because many questions are procedural. For example, “How do I set a tool offset?” should prefer step-by-step offset procedures over a generic settings list that merely mentions tool offsets.

Generation Strategy

Answers are generated locally through Ollama using Mistral.

The model receives only the retrieved manual excerpts and is instructed to:

The UI streams the answer as it is generated, then applies a citation guard so displayed answer lines end with source markers where possible.

Interface

The Streamlit UI provides:

Run the UI:

streamlit run src/cnc_rag/ui/app.py --server.fileWatcherType none

The --server.fileWatcherType none flag avoids unnecessary Streamlit file-watcher scans through large ML libraries.

Example Questions

The project includes sample questions that represent common operator and maintenance-documentation workflows:

What safety precautions should I follow before operating the machine?
How do I use MDI mode?
How do I set a tool offset?
How do I select or edit the active program?
Where are G codes and M codes listed?

Example CLI usage:

cnc-rag search "How do I set a tool offset?"
cnc-rag ask "How do I use MDI mode?"
cnc-rag chat

Example cited answer style:

1. Press [MDI] to enter MDI mode. [S1]
2. In MDI mode, unsaved programs or blocks of code can be entered from the control. [S1]
3. To save an MDI program, move to the beginning, enter a valid program number, press [ALTER], and save it. [S2]

Sources:
[S1] English - Mill Operator's Manual - NGC, page 77
[S2] English - Mill Operator's Manual - NGC, page 223

Evaluation

The project includes a small retrieval evaluation set in eval/questions.json.

Run:

cnc-rag eval --top-k 5

Current result:

Cases: 5
Page hit rate@5: 100%
Mean keyword recall@5: 100%

Evaluation checks whether retrieved chunks include expected manual pages and expected technical terms. This is intentionally simple, but it makes the project measurable and keeps improvements grounded in retrieval quality rather than chatbot impressions.

Setup

Create and activate a virtual environment:

cd cnc-rag-assistant
python3 -m venv .venv
source .venv/bin/activate
pip install -e ".[dev,ui]"

Download the demo manual:

bash scripts/download_sources.sh

Build the local index:

cnc-rag ingest

Install and run the local LLM:

ollama pull mistral
ollama serve

Start the UI:

streamlit run src/cnc_rag/ui/app.py --server.fileWatcherType none

Project Layout

data/
  raw/manuals/        # downloaded PDFs; downloaded separately
  processed/          # extracted chunks; generated locally
  indexes/            # FAISS index and metadata; generated locally
docs/
  project_plan.md
  screenshots/
eval/
  questions.json
scripts/
  download_sources.sh
src/cnc_rag/
  cli.py
  config.py
  evaluation.py
  generation/
  ingestion/
  retrieval/
  ui/
tests/

Manual Upload Support

A manual upload feature is feasible without making the system heavy, but it should be designed carefully.

The current project uses a controlled corpus:

Place PDFs in data/raw/manuals/
Run cnc-rag ingest
Search or ask questions

That is the best default for a portfolio MVP because it is reproducible, easy to evaluate, and avoids accidental indexing of unrelated files.

A lightweight upload extension would work like this:

Upload PDF in Streamlit
Save it to data/raw/manuals/
Run the same ingestion pipeline
Rebuild the FAISS index
Show the updated corpus status

Recommended guardrails for upload support:

This extension is useful for a future “admin mode.” It is not necessary for the core demo, where a stable corpus makes evaluation and screenshots more reliable.

Safety Boundary

This project is a documentation assistant, not a machine-control system.

It does not connect to a CNC controller, execute G-code, modify machine state, or replace operator training. It should be treated as a source-grounded help tool that points users back to manufacturer documentation.

Important safety assumptions:

Limitations

Current limitations:

Possible improvements:

What This Project Demonstrates

This project demonstrates practical industrial AI engineering:

The result is a compact but realistic prototype of how RAG can support CNC operation and maintenance workflows without sending sensitive shop-floor documentation to external services.

Overview

Learning Reference: RAG Concepts

This project was informed by modern RAG learning material, including Anthropic’s Claude/API course resources. It is not designed as a direct course implementation or Claude-specific clone. Instead, it applies the same general RAG ideas to an offline industrial use case: CNC machine documentation.

RAG concepts that are well covered in this project:

Recommended next improvements:

The current project is intentionally offline-first, so it does not depend on Claude or any hosted API. That is a design choice, not a limitation of the RAG architecture. A future hosted-model version would be useful for comparison, but the core value of this project is local, source-grounded industrial assistance.

Relevant Anthropic references:
